| Quantity: | |
|---|---|
| Parameter | Value |
|---|---|
| Channel | Straight Through Type |
| Driving Mode | Manual |
| Type | Floating Ball Valve |
| Temperature | Normal Temperature |
| Application | Industrial Usage |
| Specification | 1/2"-10" |
| Connection Form | Flange |
| Function | Blow-Down Valve |
| Brand Name | FSTPipe |
| Surface Treatment | Polish |
| Usage | Kitz hydraulic SS BSP thread ball valve price |
| Valve Type | 2-way / 3-way |
| Warranty | 15 years |
| Customized Support | OEM, ODM |
| Media | Water |
| Place of Origin | China |
| Material | Stainless Steel |

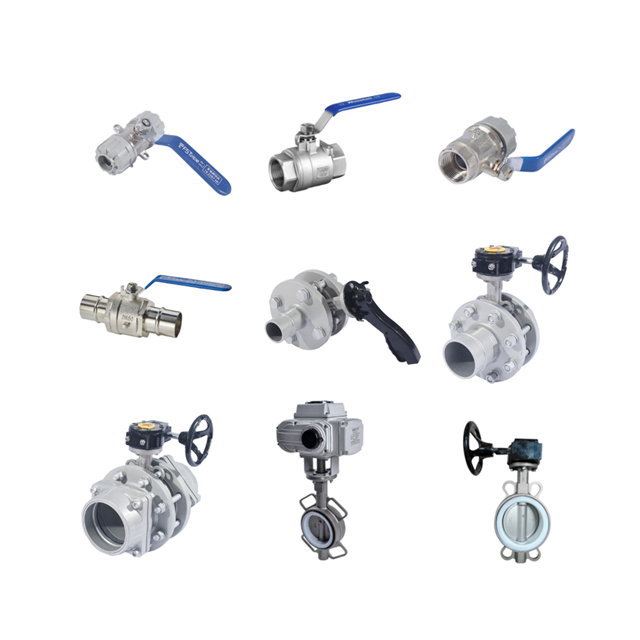

The 1/2'-10' SS Butterfly Valves for Industry deliver precise flow control across a broad range of industrial applications, combining robust construction with efficient operation. Available in sizes from 1/2” to 10” (DN15 to DN250), these valves feature a 316 stainless steel body and disc for exceptional corrosion resistance, with optional 304 stainless steel components for cost-sensitive applications . Rated for operating pressures up to 300 psi (20.7 bar) and temperatures ranging from -20°F to 425°F (-29°C to 218°C), they utilize a double-offset design that minimizes seal wear and ensures bi-directional sealing capability . Compliant with API 609 and ISO 5752 standards, these valves provide reliable on-off and throttling control for liquids, gases, and slurries in demanding industrial environments.
The offset disc design reduces contact between the disc and seat during operation, extending seal life by 50% compared to standard concentric butterfly valves and enabling bubble-tight shutoff (ANSI Class VI) when closed .
With a flow coefficient (Cv) ranging from 15 for 1/2” valves to 3,800 for 10” valves, these butterfly valves minimize pressure drop, requiring less pumping energy than globe valves of equivalent size .
The one-piece stainless steel stem features a 17-4 PH stainless steel actuator mounting pad and precision bearings, providing torque transmission efficiency of 98% and resisting bending under high operating pressures .
Compatible with manual levers, gear operators, electric actuators, and pneumatic actuators, with an ISO 5211 mounting flange that simplifies automation integration without custom adapters.
These industrial butterfly valves excel in:
• Chemical Processing: Controlling flow of corrosive liquids and gases in reaction systems.
• Power Generation: Regulating cooling water and steam condensate lines in power plants.
• Water Treatment: Managing filtration systems and chemical dosing processes.
• Food and Beverage: Sanitary flow control in processing and CIP (Clean-In-Place) systems.
• HVAC Systems: Balancing chilled water and hot water loops in large commercial buildings.
316 stainless steel offers superior resistance to chlorides and acids, making it suitable for coastal or chemical applications, while 304 provides excellent performance in general industrial environments at a lower cost .
In clean service applications, seats typically last 5-7 years with proper maintenance. In abrasive or dirty services, inspect seats quarterly and replace when leakage exceeds ANSI Class VI standards.
Yes, the double-offset design allows precise flow control between 10% and 90% open, maintaining stable operation within this range for process regulation.
The valves can handle up to 200 psi differential pressure during opening, making them suitable for most industrial system start-up conditions.
