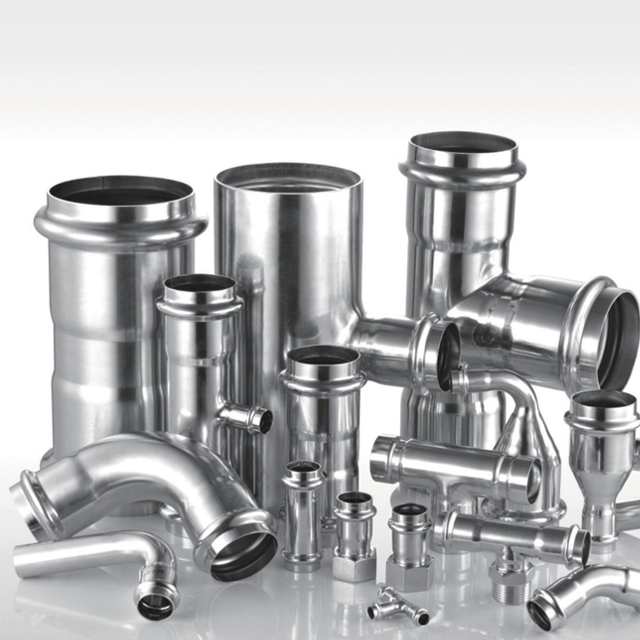

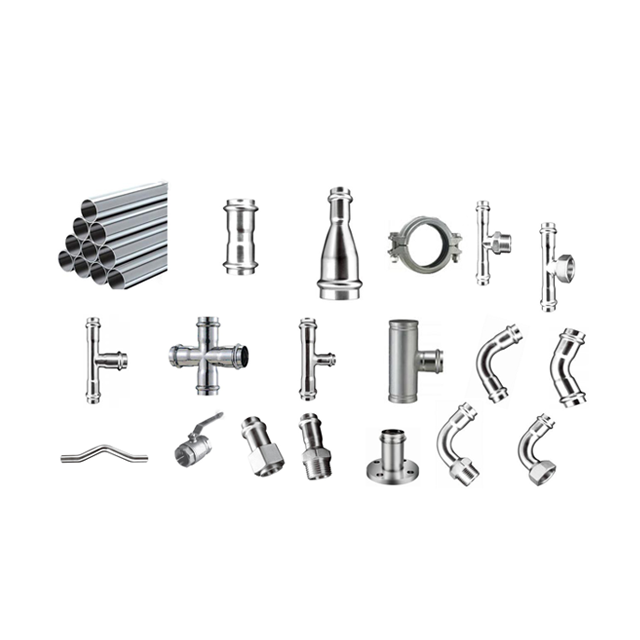

Stainless Steel Piping

The advantages of stainless steel air pipe:
● Recognized as the most healthy and environmentally friendly material,without bacteria and carcinogens.
● The material has high strength,super corrosion resistance and good heat preservation performance.
● The connection is safe and reliable,with high strength and strong shock resistance
● Using double-camping and full-clamping quick-
● insertion pipe fittings,no welding or gluing is required,quick installation and high efficiency.
● Meet the requirements of embedded installation in concealed projects.
● The service life is more than 70 years,and there is almost no need to maintain and update
● The stainless steel pipe during the service life of the building.

Quantity:
Availability:





Inquire Add to Basket

FSTpipe has a complete production line of S304,S316 stainless steel pipes,complete production line of double clamp and hoop type pipe fittings.The products have passed the relevant tests of hygiene,physical and chemical properties.We are committed to providing customers with high value-added products and services based on the principle of "scientific design,precision manufacturing,and strict inspection.

Product Parameters:

Pipe Standard: DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN100,DN125,DN150,DN200,DN250,DN300

Pipe material: S304,S316

Applications: Compressed air, Nitrogen, Inert gas, Vacuum, Drinking water...

Pressure Level: 1.6Mpa

Operating Temperature: -40°C-+120°C, -40°C-+200°C

Fitting standard: DN15-DN300

Connection: Double press, clamp Type,

Fitting Material: S304,S316

Sealing Material: Nbr Nitrile, Mvq Silica Gel, Vitona Fluorine Rubber

Stainless Steel Piping

Stainless Steel Air Piping
Standard	DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
Inch	1/2’’	3/4’’	1’’	1-1/4’’	1-1/2’’	2’’	2-1/2’’	3’’	4’’	5’’	6’’	8’’	10’’	12’’
OD(mm)	16.00	20.00	25.40	32.00	40.00	50.80	76.10	88.90	101.60	133.00	159.00	219.00	273.00	325.00
Thickness(mm)	0.80	1.00	1.00	1.20	1.20	1.20	2.00	2.00	2.00	2.00	2.50	3.00	3.00	4.00
ID(mm)	14.40	18.00	23.40	29.60	37.60	48.40	72.20	84.90	97.60	129.00	154.00	213.00	267.00	317.00

Stainless Steel Air Piping
Standard	DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
Inch	1/2’’	3/4’’	1’’	1-1/4’’	1-1/2’’	2’’	2-1/2’’	3’’	4’’	5’’	6’’	8’’	10’’	12’’
OD(mm)	16.00	20.00	25.40	32.00	40.00	50.80	76.10	88.90	101.60	133.00	159.00	219.00	273.00	325.00
Thickness(mm)	0.80	1.00	1.00	1.20	1.20	1.20	2.00	2.00	2.00	2.00	2.50	3.00	3.00	4.00
ID(mm)	14.40	18.00	23.40	29.60	37.60	48.40	72.20	84.90	97.60	129.00	154.00	213.00	267.00	317.00

Stainless Steel Piping
