| Parameter | Value |
|---|---|
| Pipe Standard | DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200 |
| Pipe Material | Aluminum Alloy |
| Applications | Compressed air, oil-free or lubricated, wet, vacuum, inert gases. Fireproof and suitable for outdoor applications |
| Max. Working Pressure & Temperature | 15 bar (-20°C ~ +80°C), 16 bar (-20°C ~ +45°C) |
| Vacuum | 0.013 bar (absolute pressure) |
| Fitting Standard | DN15 - DN200 |
| Connection | Push-in-fit connection; Clamp connection |
| Fittings Material | Aluminum Alloy |
| Sealing Material | NBR Nitrile, MVQ Silica Gel, Viton Fluorine Rubber |
FSTPipe’s Aluminum Air Pipe is designed for high-performance air and gas transmission. The pipes are made from durable aluminum alloy, ensuring strength and long-lasting use. Available in sizes ranging from DN20 to DN200, suitable for various system configurations. These pipes are used in applications involving compressed air, lubricated and oil-free air, vacuum, and inert gases. They are fireproof and suitable for outdoor installations, even in harsh conditions. The maximum working pressure is 15 bar for temperatures between -20°C and +80°C, and 16 bar for temperatures up to +45°C. The pipes can withstand a vacuum of 0.013 bar (absolute pressure), providing flexibility in different systems. Fittings are available in sizes DN15 to DN200 and include push-in-fit and clamp connection types. The fittings are also made from aluminum alloy for strength and durability. The sealing materials include NBR nitrile, MVQ silica gel, and Viton fluorine rubber, ensuring secure seals and leak-free performance.
Cost & Energy Saving: No maintenance and reusable for system moving. Smooth inner surface for lower pressure drops and energy saving.
Quick Installation: Lighter & modular design for fast installation and easy expansion.
Perfect Compatibility: Commonly used in all brands of air compressors and pneumatic post-processing apparatus and device elements.
Clean and Hygienic: Can be used in food hygiene, medical, and pharmaceutical fields.
Safety: Strong and durable, flame retardant and shock resistant. Lightweight design for safer working conditions.
Service: Manufacturing, solutions providing, comprehensive training, and 10 years guarantee.

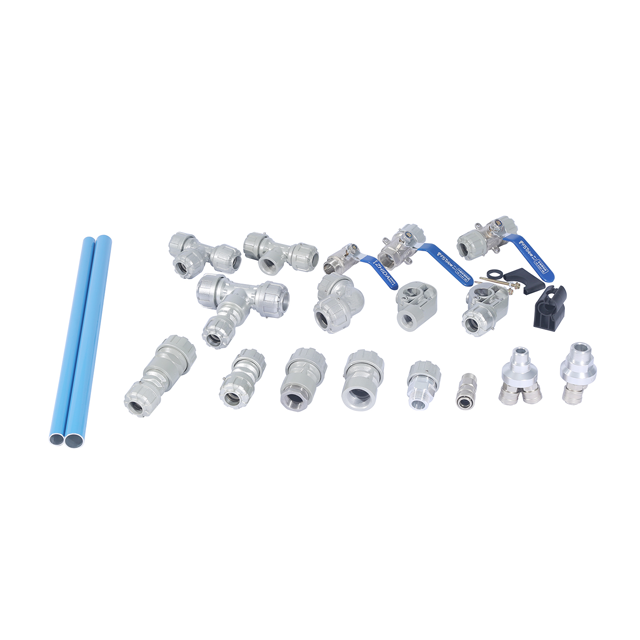

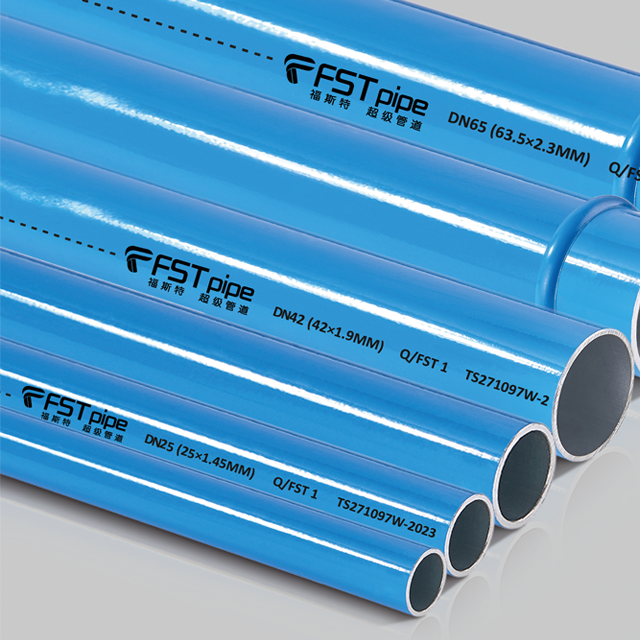

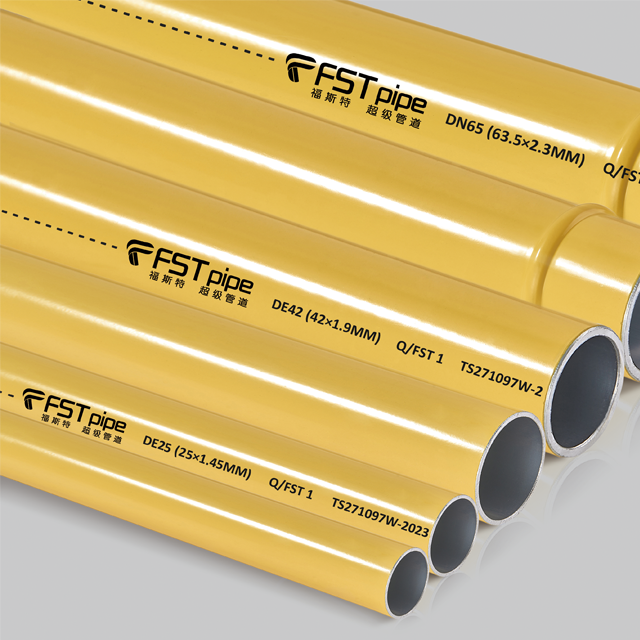

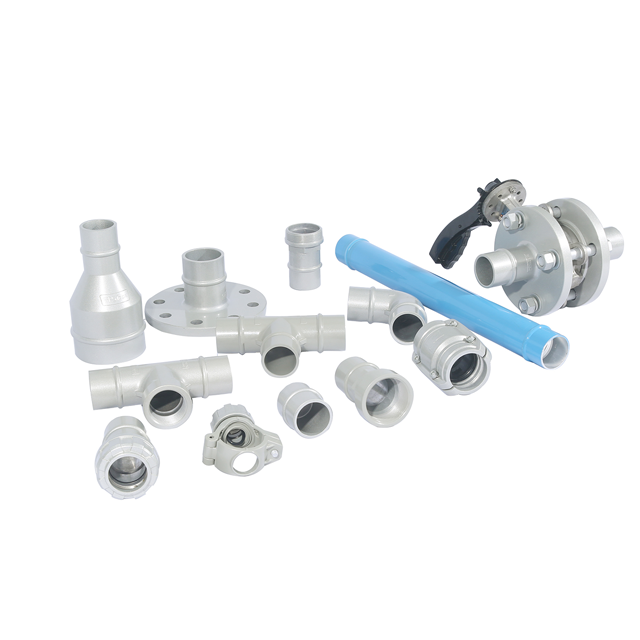

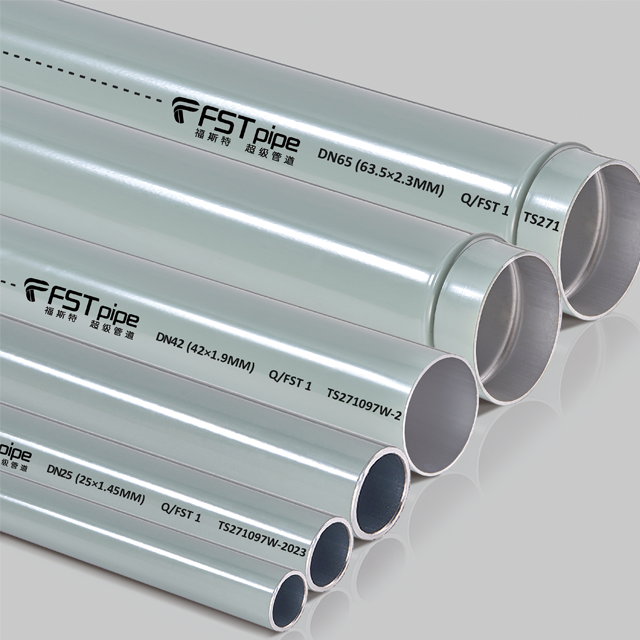

Aluminum Air Pipe: Durable and lightweight pipe for air and gas transmission.
Equal Tee: Connects three pipes of the same diameter for efficient flow distribution.
Pipe Cutter: Tool for cleanly cutting pipes to the desired length.
Pipe Clamp: Securely holds pipes in place for stable installation.
Reducing Tee: Connects pipes of different diameters to maintain system efficiency.
Burr Remover: Tool for removing burrs from pipe openings for smooth operation.
End Cap: Seals the end of a pipe to prevent flow or air leakage.
90° Elbow: Allows for a sharp change in pipe direction.
Quick Connector: Enables fast and easy pipe connection and disconnection.
Ball Valve: Controls the flow of air or gas by turning the valve handle.
Guang Dong Foster Fluid Technology Co., Ltd.: A national high-tech enterprise focusing on the research, development, production, sales, and installation of aluminum alloy and stainless steel compressed air piping systems.
Production Bases: The company has two production bases located in Foshan and Dongguan, providing efficient and quick service with a unique management model in the Pearl River Delta.
Professional Team: FSTPipe has a strong team that handles product design, development, production, and sales, offering pre-sales, in-sales, and after-sales technical and installation consultation services.
Patented Products: FSTPipe holds over 100 national patents and offers products that are energy-efficient, environmentally friendly, easy to install, and durable. It has also obtained China’s "Special Equipment Manufacturing License" (TS Certification) and "Special Equipment Production License" (GC2 Level).
Wide Applications: FSTPipe’s piping systems are widely used in high-end industries such as aerospace, automotive manufacturing, precision electronics, and machinery manufacturing.
