Food, pharmaceutical, and biotechnology facilities operate under absolute zero-margin-for-error conditions. A single microscopic contamination event triggers massive regulatory recalls. It easily ruins brand reputations permanently. Maintaining ultimate cleanliness requires highly specialized infrastructure. Conventional pipes trap dangerous bacteria rapidly. They harbor stubborn biofilms and quickly degrade during rigorous daily cleaning cycles. Selecting the correct materials prevents these catastrophic biological failures.
You will discover how to evaluate material grades and surface finishes accurately. We will explore essential geometric design frameworks to eliminate contamination risks. You will learn actionable steps to specify an optimal setup matching strict FDA and 3-A Sanitary Standards. Engineers face complex choices regarding alloys and joining methods daily. You must balance complex fluid dynamics against stringent sterilization requirements.
This guide breaks down exact technical specifications. We provide clear parameters for your next facility upgrade. You can apply these insights immediately to safeguard your production environment. Proper planning ensures absolute biological safety across all processing lines.
Hygiene-sensitive sectors demand flawless fluid transportation networks. Pharmaceutical plants and dairy processing facilities share similar strict mandates. They must move liquids or gases without introducing any foreign particles. A well-designed stainless steel piping system acts as the primary defense against microbial growth. It provides a reliable barrier against external environmental contaminants.
Regulatory bodies strictly govern these demanding production environments. The FDA and 3-A Sanitary Standards institute clear baseline rules. ASME BPE dictates exact manufacturing practices for bioprocessing equipment. You must align your infrastructure directly with these established industry frameworks. Failing to meet these standards results in failed facility audits.
Systems undergo intense Clean-In-Place (CIP) and Sterilize-In-Place (SIP) routines constantly. Operators pump harsh alkaline chemicals through the lines daily. They follow this chemical wash using high-temperature sterile steam. Ordinary metals corrode rapidly under such extreme chemical stress. Superior alloys resist aggressive chemical attacks effectively. They maintain structural integrity across decades of intense thermal cycling.
Effective cleaning relies heavily on fluid dynamics. CIP systems must achieve turbulent flow to scrub internal walls properly. Engineers target a minimum fluid velocity of 1.5 to 2.0 meters per second. Laminar flow is entirely unacceptable in sanitary environments. It leaves boundary layers untouched. Biofilms easily survive laminar washes. You must size your lines correctly to guarantee consistent turbulent velocity.
Engineers typically choose between two primary austenitic alloys. Type 304 and Type 316L dominate modern sanitary applications. You must evaluate your specific fluid characteristics carefully before deciding. Using the wrong alloy compromises the entire facility.
Type 304 serves as a highly reliable baseline material. It contains roughly 18% chromium and 8% nickel. You will find it commonly utilized in standard food processing plants. It handles potable water, dairy, and mild chemicals effortlessly. However, it struggles severely against highly corrosive chlorides. Salty environments or aggressive acidic foods cause it to pit over time.
Type 316L provides enhanced metallurgical protection. The "L" designation indicates an extra-low carbon content. This prevents dangerous carbide precipitation during intense welding procedures. Manufacturers add molybdenum to this specific alloy composition. Molybdenum drastically increases resistance to localized pitting from chloride solutions. Pharmaceutical and specialized medical environments strictly mandate 316L components. It offers superior longevity when exposed to severe SIP steam cycles.
Table: Standard Austenitic Alloy Comparison
Alloy Grade | Chromium Content | Nickel Content | Molybdenum Content | Best Application |
|---|---|---|---|---|
Type 304 | 18 - 20% | 8 - 10.5% | None | Standard dairy, beverage, mild water systems |
Type 316L | 16 - 18% | 10 - 14% | 2 - 3% | Pharmaceuticals, high-chloride foods, WFI (Water for Injection) |
AL-6XN | 20 - 22% | 23 - 25% | 6 - 7% | Extreme corrosive environments, high salt buffers |
Material choice only solves half the engineering problem. System geometry dictates actual daily cleanability. Poor layouts create hidden spaces for aggressive bacteria. You must design lines to drain completely.
Dead legs represent the highest biological risk in sanitary networks. A dead leg is a branch where fluid stagnates. Bacteria breed rapidly in these warm stagnant zones. CIP fluids cannot penetrate deep dead legs effectively. ASME BPE standards strictly limit dead leg dimensions. The maximum target ratio is strictly 2:1. You measure the target branch length against the main tube diameter. Modern designs often target a stricter 1.5:1 ratio.
Horizontal runs must never be perfectly flat. Gravity remains your best tool for complete system drainage. Engineers specify precise slopes to ensure liquid exits the network. Typical pharmaceutical guidelines require a minimum slope of 1/8 inch per foot. Proper sloping prevents residual chemical pools after CIP cycles. You must support these sloped lines robustly. Sagging lines create artificial low points where water pools.
Changing line sizes requires careful component selection. You should never use concentric reducers on horizontal runs. They create an unavoidable flat lip. Fluid pools against this lip indefinitely. You must specify eccentric reducers for all horizontal transitions. Install them with the flat side facing downward. This geometry allows fluids to pass without any pooling.
Microscopic surface topographies matter immensely in biological control. A surface appearing smooth might actually resemble jagged mountains under intense magnification. We measure this texture strictly using Roughness Average (Ra). It dictates how easily bacteria can adhere.
Lower Ra values indicate significantly smoother internal surfaces. Smooth surfaces prevent microbes from anchoring themselves firmly. Industry standards demand specific Ra thresholds based on application severity. Mechanical polishing achieves standard smoothness levels. Technicians use progressively finer abrasives to level the metal.
Mechanical polishing leaves tiny microscopic abrasions. Bacteria easily hide inside these tiny invisible scratches. Electropolishing provides a superior electrochemical solution. It strips away the outer metal layer at a microscopic level. It removes peaks, burrs, and impurities entirely.
This process yields a highly sterile, passive boundary layer. It drastically improves corrosion resistance simultaneously. Highly sensitive bioprocessing lines demand electropolished interiors. These surfaces release biofilms instantly during standard CIP turbulent washes.
How you join the tubes determines overall system reliability. Threaded connections are completely forbidden in modern sanitary environments. They create deep microscopic crevices impossible to clean effectively. You must use approved hygienic joining methods exclusively.
Orbital welding represents the absolute gold standard for permanent joints. Automated welding machines create perfectly uniform, highly repeatable welds. They eliminate human error entirely during complex installations. Cleanliness requirements demand perfect full-penetration welds.
Installers must purge lines using ultra-pure argon gas during welding. This prevents internal oxidation known as "sugaring." Sugaring creates a rough, porous surface where rust begins instantly. Quality control inspectors require digital printouts for every single automated weld. This provides comprehensive traceability for facility validation packages.
Many process sections require frequent manual dismantling for routine inspection. Tri-clamp fittings provide secure, hygienic, and easily removable connections. They use a specialized elastomeric gasket compressed between two flat ferrules. A heavy-duty clamp holds the assembly tight.
You must inspect these internal gaskets routinely. Elastomers degrade naturally over time under severe chemical exposure. Selecting the correct gasket material is crucial. EPDM handles steam perfectly but degrades rapidly around fatty oils. Viton handles fats beautifully but fails in high-temperature steam. PTFE resists all chemicals but lacks natural physical memory. It tends to cold-flow under pressure.

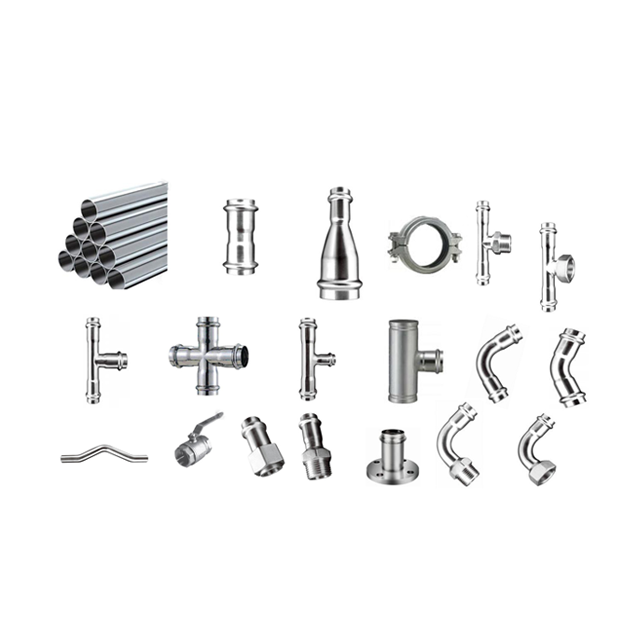

Facilities sometimes need rapid deployment without complex hot work permits. A high-quality stainless steel pipe system utilizing press technology offers a compelling alternative. Installers use hydraulic tools to permanently crimp the fittings.
These specialized components speed up critical installation timelines drastically. They maintain strict hygiene standards when matched with correct EPDM or FKM O-rings. They provide reliable, leak-free performance in secondary utility areas. You must verify local regulatory approval before utilizing press fittings in primary product lines.
Hygiene-sensitive plants rely heavily on pure utility gases. Nitrogen, carbon dioxide, and sterile compressed air contact food products directly. You cannot transport these pure gases through standard carbon steel. Rust, moisture, and compressor oil will contaminate the final product instantly.

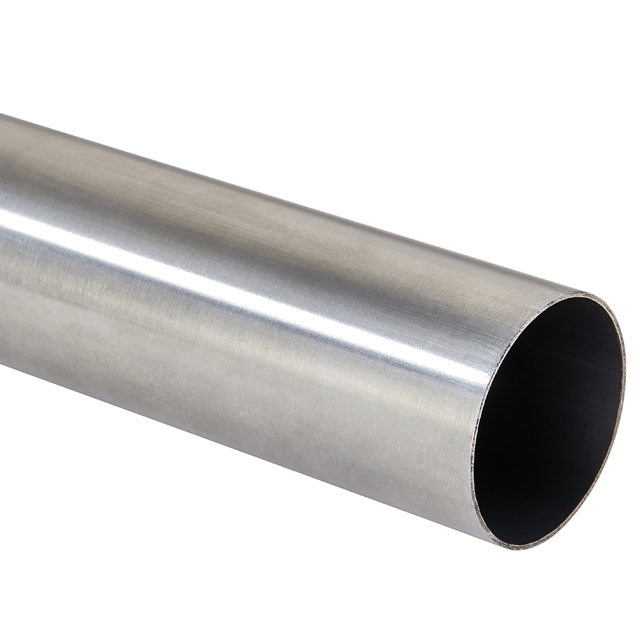

A dedicated stainless steel air piping network prevents dangerous particulate generation. These dry lines require the exact same rigorous cleaning protocols as liquid lines. Point-of-use sterile filters provide the final crucial defense barrier.
You must size these gas lines correctly to maintain adequate velocity. Consistent positive pressure prevents dangerous backflow contamination scenarios. Proper gas infrastructure ensures your sterile products remain completely unaffected by utility impurities.
Careful engineering specification fails if field installation execution is poor. Contractors must follow stringent handling procedures on site constantly. Validation requires comprehensive documentation proving systems perform exactly as intended.
Here are critical best practices during facility installation:
Store all materials indoors away from standard carbon steel grinding dust.
Keep tube ends capped tightly until the exact moment of welding.
Use dedicated cutting tools exclusively meant for high-grade sanitary alloys.
Document every single orbital weld digitally for strict compliance tracking.
Perform rigorous hydrostatic testing using only filtered, deionized water.
Commissioning requires thorough chemical passivation before active daily use. Passivation uses heated nitric or citric acid to remove free surface iron. This crucial step restores the vital chromium oxide passive layer fully. It guarantees maximum corrosion resistance from the very first production batch.
Even highly experienced process engineers occasionally overlook subtle mechanical details. Small errors compound into massive contamination risks. Let's examine frequent critical pitfalls to avoid during deployment.
Mixing dissimilar metals inappropriately, causing rapid and severe galvanic corrosion.
Selecting incorrect elastomer gasket materials that swell or dissolve in harsh CIP chemicals.
Placing diaphragm valves in horizontal orientations where they trap liquids and fail to drain completely.
Ignoring thermal expansion rates, leading to severely warped runs and broken hanger supports.
Failing to account for heavy pump vibration, which causes premature orbital joint fatigue.
You can avoid these structural issues by conducting rigorous 3D model reviews early. Engage specialized clean-piping contractors rather than standard commercial plumbers. Proper external support design is equally important. Hangers must not trap external dirt or block washdown procedures.
Navigating hygiene-sensitive fluid transport demands extreme mechanical precision. You must prioritize specialized metallurgical choices systematically. Protecting your final product requires flawless execution across every single joint.
Align primary alloy selections like 316L directly with fluid corrosivity and specific CIP routines.
Mandate strict geometric design rules to eliminate hazardous dead legs entirely from the layout.
Specify explicit Ra values and chemical electropolishing requirements for all wetted interior surfaces.
Enforce comprehensive documentation during all automated orbital welding and chemical commissioning phases.
Evaluate your current facility layouts against modern ASME BPE standards today. Consult with certified metallurgical engineers to identify vulnerable legacy process lines. Upgrade outdated components promptly to guarantee absolute biological safety. Proactive engineering eliminates catastrophic contamination risks permanently.
A: Industrial pipes transport basic utility fluids. They often use standard threaded fittings and rough mill finishes. Sanitary pipes handle consumables or pharmaceuticals exclusively. They mandate ultra-smooth internal surfaces, exact Ra specifications, and crevice-free connections. These strict features prevent bacterial growth completely. They ensure comprehensive cleaning during daily CIP processes.
A: You should establish a preventative maintenance schedule based strictly on CIP frequency. Facilities running daily high-temperature chemical cycles often replace gaskets quarterly. Routine visual inspections should occur monthly. Degraded elastomers compromise hygiene rapidly. They harbor dangerous biofilm accumulations. Always track manufacturer batch numbers for reliable traceability.
A: No. Manual stick or standard MIG welding is entirely unacceptable. Sanitary lines require precise Tungsten Inert Gas (TIG) welding. Most critical applications demand automated orbital welding machines. You must use continuous internal argon gas purging. This guarantees a perfectly smooth, fully penetrated interior weld seam free of dangerous oxidation.
A: Mechanical polishing leaves tiny microscopic abrasions. Bacteria easily hide inside these invisible scratches. Electropolishing is an advanced electrochemical process. It strips away the outer metal layer at a microscopic level. It removes peaks, burrs, and impurities entirely. This yields a highly sterile, passive surface that vigorously resists biological contamination.
