Air Compressor Piping: How to Choose Pipe Size

Undersized piping creates systemic pressure drops across industrial facilities. This restriction forces compressors to overwork constantly just to meet minimum demand. Conversely, oversized piping incurs unnecessary capital expenditure during facility construction. Finding the optimal balance prevents severe inefficiencies and saves money. We built this guide to provide a structured, engineering-aligned framework for evaluating your network. You need reliable methodologies to finalize sizing decisions effectively. Optimal sizing requires balancing maximum flow rate, total run distance, and layout complexity. You cannot rely on guesswork when designing a facility's pneumatic system. It demands careful calculation and strategic planning. You will learn how to evaluate friction loss, select proper materials, and assess layouts efficiently. Mastering these principles guarantees stable performance and protects your equipment investments over the long term.

Key Takeaways

• Sizing dictates efficiency: A single inch reduction in optimal pipe diameter can significantly increase friction loss and energy costs over a year.

• Layout matters as much as length: Every elbow, tee, and valve adds "equivalent length" that must be factored into your air compressor pipe size calculations.

• Discharge specifics: The compressor discharge pipe requires distinct sizing and material considerations due to high heat and initial velocity.

• Supplier vetting is critical: Partnering with a reliable air compressor piping supplier ensures compliance with safety standards and access to accurate system flow data.

The Financial Impact of Incorrect Sizing: Framing the Problem

Many industrial facility managers heavily underestimate how diameter affects bottom-line profits. Friction inside undersized tubes leads to significant PSI loss at the point of use. We call this phenomenon pressure drop. It forces pneumatic tools, automated valves, and spray guns to operate below their optimal power thresholds. Operators often compensate for sputtering tools by turning up the central compressor's output pressure. This wastes immense amounts of energy and destabilizes the entire network.

Consider the industry-standard energy multiplier used by plant engineers. Every 2 PSI of excess pressure required at the compressor uses approximately 1% more energy. If you lose 10 PSI across a poorly designed distribution network, you waste 5% more electricity annually. We frequently see this fundamental mistake cost manufacturing plants tens of thousands of dollars every year. The financial drain occurs silently, hidden within standard utility bills.

Furthermore, undersized infrastructure damages expensive machinery. Forcing a compressor to run at elevated pressures constantly accelerates component wear. It overworks the drive motor and degrades internal rotary seals prematurely. It also raises the ambient operating temperature, which shortens the lifecycle of the lubricating oil. Proper sizing protects your equipment investments. It guarantees the compressor operates comfortably within its intended design parameters. Ultimately, investing in the right dimensions upfront slashes your utility bills and minimizes unexpected maintenance downtime.

Core Variables in Air Compressor Piping Design

You must evaluate several dynamic variables to build a highly reliable system. A robust air compressor piping design relies on precise data collection from the facility floor. Let us look at the foundational elements you need to measure to guarantee success.

First, you must identify your maximum airflow in Cubic Feet per Minute (CFM). Sizing must account for peak demand, not just the compressor's rated output. Calculate the total concurrent tool and machine usage accurately. You need enough volume to support every pneumatic device running simultaneously during your busiest production shift. If you undersize based on average usage, your system will choke during peak operational hours.

Next, factor in your operating pressure (PSI). There is a direct inverse relationship between pressure and volume. Lower pressure systems often require larger diameter pipes. This compensates for the reduced driving force to maintain adequate flow across the factory. Higher pressure systems can push air through smaller lines, but generating that high pressure is expensive and increases equipment wear.

Total run distance also plays a massive role in your calculations. Air velocity and friction loss compound drastically over distance. Air rubbing against the inner walls slows down the flow. Therefore, longer horizontal and vertical runs necessitate step-ups in diameter to reduce resistance. You must measure the entire path from the compressor room to the furthest machine to establish an accurate baseline length.

Finally, always plan for future expansion capacity. We highly recommend building a 20-30% capacity buffer into your current design. Manufacturing facilities grow, and adding new automated equipment demands more airflow. Upsizing your main header today prevents disruptive and costly repiping projects tomorrow.

How to Calculate and Select Your Air Compressor Pipe Size

Industrial engineers use standard sizing matrices to establish an initial baseline. You plot your required CFM against the total physical pipe length. This quick cross-reference gives you a preliminary air compressor pipe size before you refine the details.

Baseline CFM vs. Pipe Length Sizing Matrix

Handling the immediate transition from the compressor is highly critical. The compressor discharge pipe absorbs severe punishment daily. It must match or slightly exceed the compressor's discharge port size. Furthermore, it needs to withstand peak discharge temperatures and initial turbulent velocities. Hot air exits the compressor rapidly, so this specific segment requires durable materials and vibration isolation to prevent cracking.

You must also define strict velocity limits for the entire network. Industry guidelines suggest keeping main headers below 20-30 feet per second. High speeds cause aggressive turbulence and encourage moisture carryover. Slower air allows water vapor to condense safely before reaching your sensitive tools. Excess velocity essentially turns your piping into a wind tunnel, stripping moisture from traps and pushing it into your pneumatic cylinders.

Lastly, remember how material influences your sizing. Inner wall smoothness heavily impacts internal friction. Smooth modular aluminum alters actual flow efficiency compared to rough galvanized or black iron. Even at identical diameters, a smooth interior prevents pressure loss better than a textured one. Corrosion inside iron pipes increases friction over time, effectively reducing the internal diameter and choking your airflow.

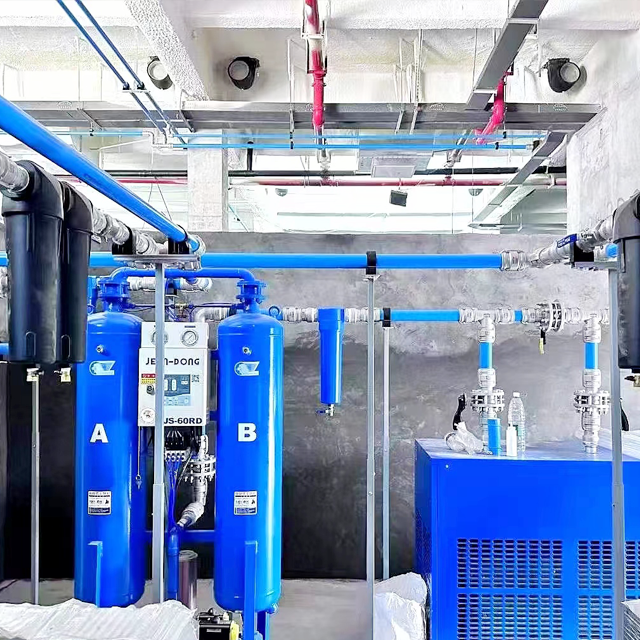

How Compressor Piping Layout Alters Sizing Requirements

Distance is not the only factor creating flow resistance. A complex compressor piping layout introduces numerous new friction points. We use the "Equivalent Length" rule to calculate this accurately.

Every fitting adds resistance equivalent to feet of straight pipe. An elbow, a reducer, or a tee creates turbulence as air changes direction. For instance, a single 2-inch 90-degree elbow might add 5 feet of equivalent length to your system. You must sum these up and add them to your total physical distance. Failing to account for dozens of fittings results in a severely undersized network.

Your overall layout shape dictates sizing rules as well. There are two primary configurations to consider:

• Straight Line Systems: These require progressively larger diameters as the run extends. The air only flows in one direction. Therefore, the end of the line will starve for air if the tube is too narrow. This setup is common in long, narrow buildings.

• Ring Main (Loop) Systems: These allow air to flow in two directions simultaneously. This configuration cuts the effective load on the pipe in half. A loop often permits using a smaller diameter for the main header while maintaining excellent flow and equalized pressure everywhere.

Do not forget to size your drop lines carefully. These vertical tubes feed individual equipment from the overhead header. They can be smaller than the main header to save costs. However, you must size them appropriately to meet the specific machine's CFM requirement. We advise tapping drop lines from the top of the main header using a swan neck fitting. This technique prevents condensed water from draining downward into your tools.

Evaluating an Air Compressor Piping Supplier

Sourcing the right materials ensures safety and long-term performance. You should thoroughly vet your air compressor piping supplier before finalizing your procurement list.

Technical support and validation are absolutely paramount. Look for vendors who offer engineering verification of your layout. They should review your schematics, check your equivalent length math, and confirm your sizing choices. A strong supplier acts as a technical partner, offering guidance and flow simulations before you commit to a purchase.

Material certifications ensure workplace safety and regulatory compliance. Vendors must provide materials rated strictly for compressed air applications. You must avoid standard PVC entirely. Standard PVC poses severe shatter risks when pressurized and degrades rapidly when exposed to compressor oils. Ensure your supplier provides metal or specialized polymer solutions rigorously tested for high-pressure industrial environments.

Availability of specialized fittings matters immensely for future flexibility. Assess whether the supplier stocks modular fittings and quick-connect components. These specialized parts simplify layout modifications and mitigate pressure losses across complex bends. When a new machine arrives, modular fittings allow you to tap into the main line quickly without shutting down the whole plant for welding or threading.

Conclusion

Optimizing your pneumatic network requires precision and diligent planning. We have explored the critical link between precise pipe sizing, energy efficiency, and operational stability. Guessing your diameters only leads to wasted electricity, poor tool performance, and damaged machinery.

1. Calculate your peak CFM demand accurately and map out total equivalent lengths, including all fittings.

2. Choose a ring main loop configuration whenever possible to equalize airflow and reduce header size.

3. Select smooth, high-quality materials to minimize internal friction and prevent corrosion.

4. Schedule a final engineering review of the layout and flow requirements before you purchase any materials.

Take the next step today to protect your infrastructure. We encourage you to consult with your technical team or utilize a provided sizing calculator to finalize your system specifications. Taking the time to engineer the perfect layout ensures your facility remains productive, safe, and highly efficient for decades to come.

FAQ

Q: What happens if my air compressor pipe size is too big?

A: Functionally, oversized pipes act as additional air storage (receiver capacity) and do not harm the system, but they unnecessarily inflate your initial material and installation costs.

Q: How much pressure drop is acceptable in a compressed air system?

A: Industry best practices dictate aiming for a maximum pressure drop of 10% (or less) from the compressor discharge to the furthest point of use.

Q: Does the compressor discharge pipe need to be a specific material?

A: Yes. Because air exiting the compressor is hot, the discharge pipe must be a high-temp rated material (like stainless steel, copper, or specialized aluminum) and vibrate independently from the rigid distribution piping.
