In a new factory build, compressed air is often the most expensive utility running through the facility. A poorly planned layout inevitably leads to pressure drops, artificial demand, and inflated energy costs over time. For facility engineers and plant managers, the blueprint phase remains the only window to design a system balancing initial capital expenses against long-term operating costs. Retrofitting a live production floor always disrupts daily operations and incurs massive unexpected costs. This guide outlines the critical architectural choices for new industrial builds and essential material evaluation criteria. You will discover exactly how to optimize flow rates and reduce friction right from day one. Finally, we provide the exact framework required to vet and select a reliable implementation partner for your upcoming facility expansion.
Architecture dictates efficiency: An air loop design (ring main) is the industry standard for new factories, offering multidirectional flow that minimizes pressure drop compared to branch systems.
Material choice impacts lifetime ROI: Modern modular aluminum piping out-performs traditional galvanized steel by eliminating internal corrosion, reducing friction, and cutting installation labor hours.
Scalability is a measurable metric: Proper sizing must account for both immediate CFM (Cubic Feet per Minute) requirements and a 20-30% buffer for future equipment expansion.
Supplier vetting requires evidence: A qualified air pipework supplier should provide verified flow calculations, transparent pressure-drop guarantees, and strict leak-testing protocols before commissioning.
Facility managers often underestimate the financial impact of a poorly engineered system. Precision matters immensely during the initial drafting phase. Friction causes pressure loss as fluid travels through valves, elbows, and straight runs. Every two PSI of excess pressure drop forces your main compressor to consume roughly 1% more energy. Engineers universally call this the "1% rule." If your system loses 10 PSI across the plant, you waste 5% of your total compressor electricity. This inefficiency compounds every single hour your factory operates.
You also face severe risks when undersizing your pipes. Starved pneumatic tools slow down production lines significantly. When automated machines lack adequate pressure, they experience delayed cycle times or outright failures. Plant managers often try to solve this by installing localized booster compressors. These boosters consume extra electricity and introduce unnecessary maintenance points. A properly engineered factory air distribution setup eliminates the need for these band-aid solutions. You must size your pipes correctly from the start to protect your production targets.
Safety and compliance also drive the business case for precision. Industrial safety regulations dictate strict guidelines for pressurized vessels. You need to adhere to ASME B31.1 for power piping. Local equivalents apply depending on your region. Furthermore, modern manufacturing demands incredibly clean air. ISO 8573 standards govern air purity levels. Dirt, rust, and moisture ruin sensitive equipment. The layout and materials you choose directly dictate whether you can pass these stringent quality and safety audits.
Choosing the right structural layout dictates how effectively fluid moves through your facility. A well-planned compressed air network minimizes friction and balances pressure drops automatically.
Fluid flows in multiple directions to reach the point of demand. This multidirectional movement effectively halves the physical pipe length. It drastically reduces air velocity. Slower air encounters less friction against the pipe walls. Lower friction means better pressure retention at the end of the line.
This architecture is the non-negotiable choice for main factory headers. A closed air loop design ensures uniform pressure across your entire facility. If multiple high-demand machines activate simultaneously, the loop pulls volume from both directions. This prevents localized pressure crashes. It provides unmatched stability for continuous manufacturing operations.
This layout uses a straight linear pipe. The line simply terminates at the final machine. There is no return path for the fluid. Velocity remains high because the air only travels in one direction. High velocity creates turbulent flow and increases pressure loss.
You should only use branch systems for very short drops. They connect the main overhead ring to specific workstations below. Be extremely careful here. Moisture accumulates easily at dead ends. Without a continuous flow loop, condensation gets trapped and enters your pneumatic tools.
Large plants use interconnected ring mains. They install isolation valves for distinct production areas. A massive factory might have one loop for the assembly line and a separate loop for the packaging hall. These loops interconnect through a central manifold.
Zoned grids work perfectly for large-scale facilities. They allow distinct maintenance shutdowns. You can isolate and depressurize one specific zone to add new machinery. The rest of the plant continues running without interruption. This architecture maximizes overall uptime.
Material selection affects system performance for decades. The inner surface of your pipes determines friction levels and air purity. We evaluate three primary materials for your air pipework design to help you make an informed decision.
Galvanized steel and black iron represent the old industry standard. They offer high initial physical durability. Many older contractors are highly familiar with threading steel. However, steel weighs a tremendous amount. This heavy weight requires scissor lifts, extensive rigging, and multiple technicians. Threading machines create a messy, slow installation environment. Most importantly, internal scaling and rust inevitably occur. Compressors generate moisture. Moisture interacts with steel to form rust. Rust flakes off and travels downstream. This degrades air quality and ruins pneumatic cylinders over time.
Copper provides a smooth interior and resists corrosion very well. It offers excellent flow characteristics. Unfortunately, copper becomes prohibitively expensive at large factory scales. Commodity prices fluctuate wildly. Furthermore, copper requires time-intensive brazing. Technicians must solder joints using an open flame. You must secure hot work permits for every joint. You also need a dedicated fire watch technician on site. This slows down the entire construction schedule.

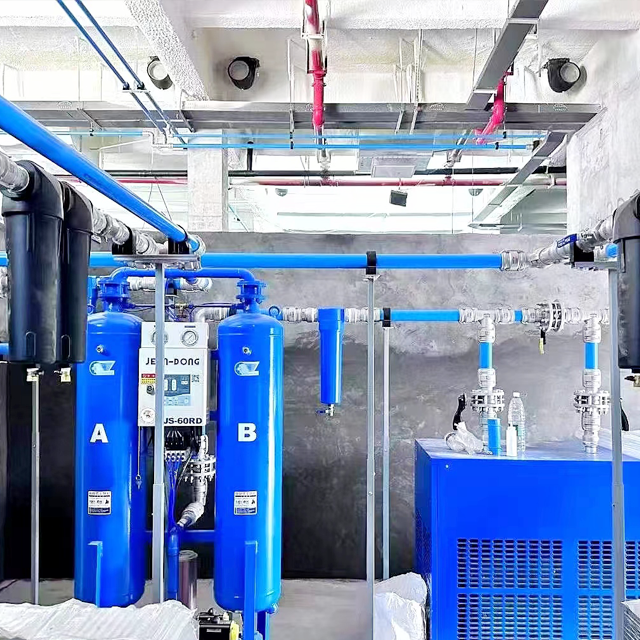

Extruded aluminum has become the modern standard for industrial facilities. Aluminum guarantees zero internal corrosion. Clean pipes protect your sensitive pneumatic valves permanently. The ultra-smooth inner wall ensures the lowest friction possible. It utilizes lightweight modular push-to-connect fittings. Technicians simply cut the pipe, deburr it, and push it into the fitting. An internal O-ring and grab ring secure the connection instantly. This system drastically reduces installation labor. The raw material costs more than steel initially. However, massive labor savings offset this expense quickly.
Material Type | Corrosion Resistance | Installation Speed | Friction Level | Labor Requirement |
|---|---|---|---|---|
Galvanized Steel | Low (Internal rust occurs) | Slow (Requires threading) | High (Rough interior) | Heavy lifting, specialized tools |
Copper | High | Slow (Requires brazing) | Low | Hot work permits, skilled brazers |
Extruded Aluminum | Maximum (Zero rust) | Fast (Push-to-connect) | Lowest (Smooth walls) | Lightweight, minimal tools |
Sizing your network properly prevents bottlenecking. An undersized system limits factory output. An oversized system wastes upfront capital. A balanced air pipework layout requires careful calculation. Consider these four critical engineering parameters during your design phase.
Calculating Peak Demand vs. Base Load: Never engineer purely for the maximum possible theoretical load. Apply a diversity factor. Not all machines run simultaneously in a real factory. Calculate your continuous base load and identify brief peak demand spikes. Accurate flow calculations prevent expensive over-engineering while ensuring adequate supply during shift changes.
Velocity Thresholds: You must keep fluid velocity below 20 to 30 feet per second. High velocity creates turbulent flow. Turbulence carries condensed moisture directly into your machines. Slower, laminar flow allows moisture to drop out of the air stream safely into designated drip legs. Proper sizing naturally regulates this velocity.
Strategic Drop Placement: Always utilize "gooseneck" or top-takeoff drops. Do not tap directly into the bottom of the main header. A top-takeoff creates a physical upward loop. Gravity prevents condensation from traveling up and over the loop. This simple physical barrier protects expensive pneumatic equipment from catastrophic water damage.
Future-Proofing: Factory floors change constantly. You should oversize your main overhead header by one standard diameter size. If the math calls for a 2-inch pipe, install a 2.5-inch pipe. The material cost difference remains minimal during initial construction. This minor upgrade acts as the cheapest insurance policy for future factory expansion. You can add more machines later without replacing the entire main loop.
Picking the right partner determines long-term project success. A bad installation leads to invisible leaks. Leaks force compressors to run continuously, wasting thousands of dollars annually. You must demand strict evidence from any potential air pipework supplier before signing a contract.
Requirement 1: Pre-Installation Fluid Dynamics Modeling. Reject suppliers who guess pipe sizes based on intuition. Demand exact CFM measurements. Ask for calculated velocity and expected pressure drops. They must base these numbers on your specific factory blueprint. A professional partner uses computational fluid dynamics or specialized software to prove their design works before touching a single pipe.
Requirement 2: Turnkey Modular Capabilities. Assess the supplier's inventory and product lines. They should utilize modern aluminum modular systems. Modular parts allow fast modifications. When your factory layout eventually shifts, maintenance teams can unbolt a fitting and reroute the pipe easily. Glued or threaded systems require total destruction to modify.
Requirement 3: Post-Installation Auditing (Leak Testing). Require a strict contractual commitment regarding quality control. The installer must perform ultrasonic leak testing. They also need to complete 24-hour pressure holding tests. You should never sign off on the project until they prove the system holds pressure flawlessly.
Requirement 4: Warranty and Traceability. Verify the manufacturer's warranty covering fittings, valves, and pipes. Look for guarantees extending ten years or more against leaks and physical corrosion. Reliable suppliers laser-etch batch numbers onto their fittings. This traceability ensures accountability if a manufacturing defect ever arises.
Designing a robust fluid network for a new factory requires a careful balancing act. You must weigh initial material costs against installation labor and decades of energy consumption. Taking shortcuts during the blueprint phase always punishes the facility manager later. High friction, internal rust, and invisible leaks destroy efficiency.
We strongly recommend defaulting to a properly sized aluminum ring main. The multidirectional flow stabilizes pressure effortlessly. The smooth aluminum walls eliminate rust and reduce compressor strain. Treat your supplier selection as a vital technical partnership rather than a simple commodity purchase. Demand fluid modeling and strict leak-testing protocols.
Take immediate action before your blueprints finalize. Schedule a consultation with a qualified engineering expert today. Request a site-specific layout review based on your actual machinery footprint. Download a dedicated factory air-sizing calculator to verify your expected CFM demands independently.
A: Industry best practice dictates a maximum pressure drop of 5% from the compressor discharge to the furthest point of use. Ideally, you want this drop to remain under 2 to 3 PSI. Tight pressure control reduces energy waste and keeps pneumatic tools running at peak efficiency.
A: An air loop allows fluid to travel in two directions to reach any demand point. This multidirectional flow effectively doubles the pipe's carrying capacity. It halves the air velocity. Lower velocity significantly reduces friction and pressure drop, saving substantial energy over the system's lifespan.
A: No. PVC is explicitly unsafe for compressed gases. It violates OSHA and other safety regulations. PVC becomes brittle over time. If it fails under pressure, it shatters catastrophically, producing dangerous shrapnel. Always use approved metals like extruded aluminum, copper, or steel.
A: As a general rule, you should upsize the main header pipe by one standard dimension during a new build. For example, move from a 2-inch to a 2.5-inch pipe. The material cost difference remains minimal. However, the labor cost to rip out and replace an undersized main later is immense.
