Incorrectly sized piping forces compressors to overwork constantly. This unnecessary strain drives up energy costs dramatically. It also accelerates equipment wear across your entire facility. Facility managers often realize too late how poor piping infrastructure sabotages overall operational efficiency. If pneumatics lack proper pressure, production slows down. We created this guide to solve this exact problem. It provides facility managers and engineers an evidence-based framework. You will learn how to properly evaluate your specific system requirements. We will show you exactly how to determine the optimal compressed air pipe size before you begin procurement. By mastering these engineering principles, you prevent costly energy waste. You also ensure peak performance at every pneumatic endpoint in your plant. The following sections break down core variables, system layouts, and sizing matrices. They will give you the practical knowledge necessary to design a robust, highly efficient air distribution network.
Undersizing causes severe pressure drops that starve pneumatic tools; oversizing wastes initial capital expenditure.
Accurate sizing depends on four interdependent variables: air flow rate (CFM), operating pressure (PSI), total pipe run length, and acceptable pressure drop limits.
System layout (loop vs. dead-end) and internal pipe friction (material choice) dynamically alter diameter requirements.
Selecting a reliable compressed air pipe supplier requires evaluating their technical support, inventory of standardized fittings, and compliance with industrial safety ratings.
Many facilities treat air distribution networks as an afterthought. This mistake creates lasting financial consequences. Poorly dimensioned industrial air piping strangles compressor output. You end up paying for energy you cannot use.
Pressure drop directly correlates to energy consumption. The compressor must work harder to push air through restricted pathways. Every two PSI of pressure drop increases your overall energy costs by roughly one percent. If a narrow pipe creates a 10 PSI deficit, your energy bills jump by five percent instantly. Over a typical operational year, this inefficiency drains thousands of dollars from your operating budget. It forces your machinery to run at higher setpoints just to deliver minimum baseline pressure to the factory floor.
Inadequate flow at the point of use severely damages production cycles. Pneumatic tools require specific volumes of air to function correctly. When pipes restrict this flow, torque guns lose power. Automated sorting cylinders respond sluggishly. Paint sprayers deliver uneven coats. These pressure inconsistencies lead directly to poor product quality. You will see an immediate increase in scrap rates. Operators often blame the tools. They rarely suspect the overhead piping infrastructure causing the bottleneck.
Facility planners face a strict financial balancing act. Paying for larger diameter piping requires a higher upfront capital investment. However, choosing undersized pipes to save money initially creates hidden, compounding costs. You will constantly battle restricted airflow. The system will demand constant maintenance. Compressors will fail prematurely due to continuous maximum-load operation. Smart capital allocation means spending slightly more on adequately sized main headers today. This prevents massive operational headaches tomorrow. We highly recommend evaluating these tradeoffs carefully before finalizing blueprints.
You cannot guess the right compressed air pipe diameter based on facility square footage alone. Proper engineering requires you to balance four interdependent metrics.
Your system must handle maximum concurrent demand. Do not size pipes based on average historical usage. Determine the peak air flow rate your facility requires when all machines operate simultaneously. You must match this peak demand against your compressor's total output capacity. If a 100-horsepower compressor pushes 400 Cubic Feet per Minute (CFM), the main header must accommodate 400 CFM without creating turbulence.
The physical distance of your pipe run represents only half the equation. You must also calculate equivalent length. Every fitting creates friction. Valves, elbows, and tees disrupt smooth laminar flow. Engineers assign an "equivalent length" value to these components. A single 90-degree elbow might add five feet of equivalent length to your system. You must add all these component values to the straight pipe distance. This combined number gives you the true total length for your calculations.
System pressure alters air density. Higher operating pressures compress the air molecules closer together. This increased density means the same volume of air can travel through a smaller pipe. Conversely, lower operating pressures require larger pipes to move the equivalent mass of air. Always establish your baseline operating pressure before selecting a diameter.
Industry standards mandate specific success criteria for air distribution. A well-designed system aims for a pressure drop of no more than 10 percent from the compressor discharge to the furthest point of use. If your compressor outputs 100 PSI, the most distant pneumatic tool should receive at least 90 PSI. Keeping the drop below this threshold guarantees stable machine operation across the entire plant.
Engineers often rely on quick-reference matrices during the early planning stages. These charts provide excellent baseline estimates before complex math begins.
Most charts use a standard grid approach. You will find the total equivalent pipe length on one axis. The maximum air flow rate (CFM) sits on the other axis. You simply track the intersection of these two data points. The resulting cell indicates the recommended minimum internal diameter. We advise rounding up to the next commercially available size if your intersection lands between two standard dimensions.
Table 1: Standard Reference Guide for Minimum Pipe Diameters (100 PSI Assumption)
Air Flow Rate (CFM) | Run Length: 100 ft | Run Length: 300 ft | Run Length: 500 ft |
|---|---|---|---|
50 CFM | 1 inch | 1.25 inches | 1.5 inches |
150 CFM | 1.5 inches | 2 inches | 2 inches |
300 CFM | 2 inches | 2.5 inches | 3 inches |
500 CFM | 2.5 inches | 3 inches | 3.5 inches |
You must treat static charts with healthy skepticism. They operate on rigid assumptions. Most assume a standardized 100 PSI operating pressure. They also assume perfectly smooth internal pipe walls. A compressed air pipe size chart is strictly for shortlisting materials. You should never use them for final engineering sign-off. The real world includes fluctuating temperatures, varying friction coefficients, and complex directional changes.
Certain facility designs demand empirical formulas. You must abandon simple charts if you utilize multi-compressor setups feeding a common header. Extensive vertical drop lines also require precise mathematical modeling. Fluid dynamics formulas account for exact friction factors and air velocity limits. We highly recommend using specialized engineering software for any system exceeding 1,000 equivalent feet.
Calculating the perfect diameter means nothing if you choose the wrong materials or configure the layout poorly. Structural decisions dynamically alter how air behaves inside the tube.

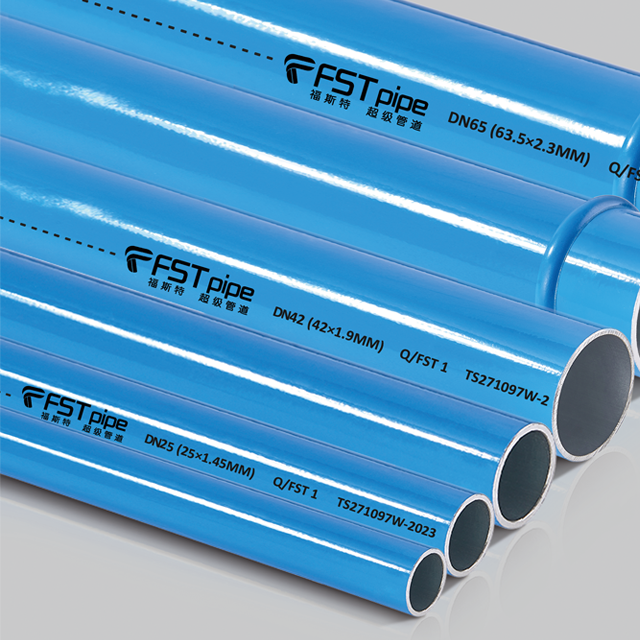

Internal surface roughness dictates velocity. Traditional black iron or galvanized steel systems degrade over time. Moisture inevitably enters the air stream. This causes steel to rust and scale internally. The rough rust increases the friction factor dramatically. It reduces the effective internal diameter, choking the air supply. We strongly advocate for smooth-bore materials. Extruded aluminum and copper maintain their pristine internal diameter indefinitely. Aluminum, in particular, offers a remarkably low friction coefficient. It ensures steady air velocity year after year.
Your layout architecture matters just as much as material choice. A dead-end configuration runs a single straight line from the compressor to the final tool. Air must travel the entire distance, accumulating friction losses along every inch.
A closed-loop (ring main) layout connects the end of the header back to the beginning. This structural advantage allows air to flow in two directions simultaneously toward any demand point. It effectively halves the maximum distance air must travel. This brilliant setup often allows you to specify a smaller overall pipe diameter while maintaining superior pressure stability.
We advise planning for tomorrow's production targets. Anticipate your facility's five-year growth trajectory. Sizing up the main header pipe during initial construction costs very little in extra material. However, retrofitting a larger header later requires massive labor expenses and costly facility downtime.
Main Loops: Size these aggressively for future expansion.
Drop Lines: Size branch lines strictly for current, local tool demand.
Valves: Install isolation valves generously to allow modular additions later.
Procuring materials requires vetting the manufacturer thoroughly. A reliable compressed air pipe supplier provides much more than just raw metal.
Look for vendors offering extensive engineering support. They should publish verified equivalent-length data for all their proprietary fittings. Premium suppliers often provide in-house sizing validation tools or calculators. This transparency proves they understand fluid dynamics. It also ensures their quoted flow rates match real-world performance.
Industrial safety is non-negotiable. Ensure the supplier’s product lines meet rigorous international codes. Their pipes and fittings should comply with ASME B31.1 guidelines for pressure piping. They should also align with ISO 8573 standards for compressed air purity. Non-compliant materials pose severe explosion risks under high pressure. Always request official certification documents before signing purchase orders.

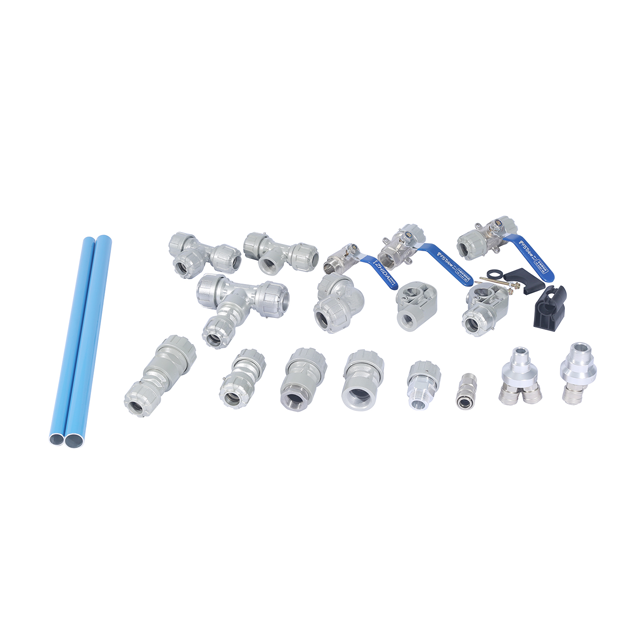

Assess the risk of vendor lock-in carefully. Prioritize suppliers designing modular, push-to-connect systems. Modern aluminum piping utilizes secure O-ring compression fittings. You can modify these networks rapidly using basic hand tools. This modularity reduces installation downtime tremendously. It slashes expensive specialized labor costs, unlike traditional threaded steel that requires heavy threading machinery.
Designing an efficient air distribution network demands rigorous attention to detail. You must audit your current and future flow rates accurately. Calculate the total equivalent length by aggressively factoring in every valve and elbow. Choose a closed-loop layout and smooth-bore aluminum materials to minimize internal friction. Use these precise metrics to request accurate quotes from verified manufacturers. We encourage you to consult with a specialized supplier early in the process. Ask them to validate your calculations against your specific facility blueprints. Taking these disciplined steps guarantees you will deploy a reliable system. You will permanently avoid the operational headaches caused by undersized infrastructure.
A: Undersized pipes create excessively high air velocity and severe pressure drops. The compressor must work overtime to compensate. You will likely experience moisture carryover into the tools. Ultimately, pneumatic equipment will receive inadequate pressure, causing sluggish performance, frequent jams, and degraded manufacturing quality.
A: Calculating pressure drop requires evaluating multiple interdependent factors. You must analyze the pipe's internal diameter, the pipe material's friction coefficient, and the peak air flow rate. You then combine the straight pipe distance with the equivalent length of all fittings and valves to determine the total friction loss.
A: Yes, you should always oversize the main distribution loop. Upgrading a main header later requires expensive labor and halts factory production. However, you can keep individual drop and branch lines sized appropriately for immediate, local application needs to balance upfront material costs.
