Industrial facilities are rapidly shifting away from traditional black iron and copper piping. They now favor modern aluminum for compressed air and fluid transfer operations. This transition is largely driven by a growing need for system modularity and significantly reduced pressure drops. When you install new infrastructure, you face complex choices. You must balance the higher upfront material costs against profound long-term labor savings. It is also critical to factor in energy efficiency gains and future system scalability.
Achieving a successful deployment requires careful preparation and precise capacity planning. You must understand the specific mechanics of modern push-to-connect fittings to prevent costly leaks. Furthermore, we must actively mitigate distinct physical risks, such as extreme thermal expansion and galvanic corrosion. You will learn how to properly size your network, avoid common installation failures, and safely integrate new components alongside existing legacy pipelines.
Labor vs. Material Cost: Aluminum systems carry higher initial material costs but typically reduce installation labor time by 30-50% compared to threading or soldering legacy metals.
Energy Efficiency: The smooth internal bore prevents scaling and rust, maintaining steady CFM (Cubic Feet per Minute) and reducing compressor load over the system's lifespan.
Expansion Realities: Aluminum expands and contracts significantly more than steel; proper anchoring and expansion loops are non-negotiable.
Modularity: Push-to-connect and compression fittings allow for rapid reconfiguration, but require strict adherence to deburring and seating depths to prevent micro-leaks.
Modern facility managers evaluate upfront capital expenditure against ongoing operational expenses. Energy savings and maintenance requirements heavily dictate long-term project success. Investing in premium materials directly reduces future operational overhead. You must look beyond the initial purchase price of pipes and fittings. Operational efficiency ultimately determines the true value of your infrastructure.
Pressure drop mitigation serves as a massive financial advantage. Aluminum features a highly corrosion-resistant interior. This creates a remarkably low friction coefficient. Smooth inner walls actively prevent internal air turbulence. Unrestricted airflow directly lowers the mechanical burden on your compressors. Compressors consume less electricity when pushing air through a frictionless environment. These daily energy savings accumulate rapidly over the system's lifespan.
We also need to contrast the underlying labor economics. Traditional black iron demands specialized labor and expensive equipment. Plumbers must operate heavy threading machines safely. Copper installation requires intense brazing techniques and costly fire watches. Conversely, modern aluminum utilizes simple mechanical assembly. Installers simply push and lock fittings together securely. This eliminates heavy lifting and hazardous hot work completely.
Lifespan and routine maintenance present another major consideration. Legacy steel pipes inevitably rust from internal moisture. Flaking iron oxide contaminates downstream production equipment. Clean aluminum completely eliminates rust-related downstream contamination. This essential feature protects sensitive pneumatic tools from premature failure. It also extends the operational life of delicate pneumatic cylinders.
Proper sizing prevents costly flow restrictions across your entire plant. You must match pipe diameter precisely to peak CFM requirements. Your compressor horsepower dictates the absolute minimum header size required. Undersized pipes create severe bottlenecks during heavy production shifts. This forces your compressor to work harder to maintain adequate pressure.
Understanding the relationship between flow rate and pipe diameter is critical. Facility engineers utilize standardized metrics to ensure stable velocity. We have provided a simplified reference chart below. It illustrates typical correlations between compressor power and suggested pipe diameters.
Compressor Power (HP) | Average Flow Rate (CFM) | Recommended Main Header Diameter |
|---|---|---|
10 HP | 40 CFM | 3/4 Inch (20mm) |
25 HP | 100 CFM | 1 Inch (25mm) |
50 HP | 220 CFM | 1.5 Inch (40mm) |
100 HP | 450 CFM | 2 Inch (50mm) |
200 HP | 900 CFM | 3 Inch (80mm) |

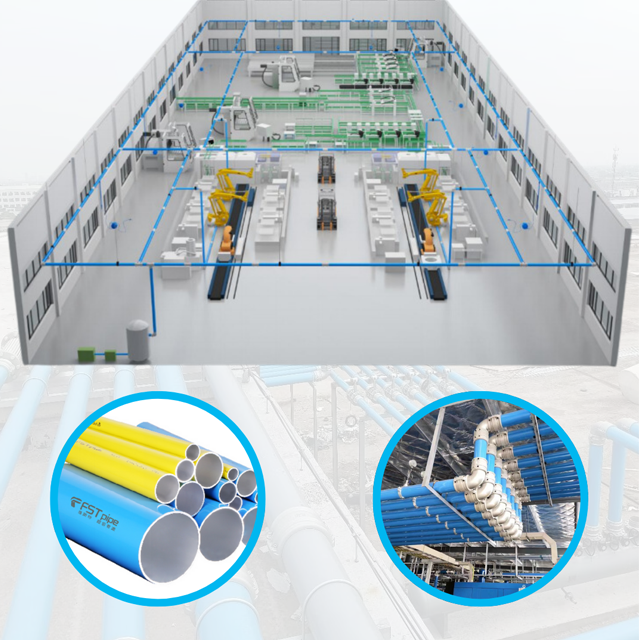

Architectural layout deeply influences overall pressure stability. Designing a closed-loop system equalizes pressure better than dead-end lines. Closed loops distribute compressed air bi-directionally across the facility. Air travels through the path of least resistance to reach demanding tools. Dead-end branch lines often suffer severe pressure drops at their furthest points. Loops ensure consistent pneumatic power at every single drop point.
Future-proofing your layout is a non-negotiable engineering best practice. We highly recommend oversizing your main header pipe intentionally. Choose one standard size larger than your current calculations require. This approach easily accommodates future facility expansion. You avoid tearing down the entire system later when adding new machinery.
Deploying aluminum pipe systems requires exact mechanical discipline. Pipe preparation remains the most common failure point during assembly. You must make perfectly square cuts using dedicated pipe cutters. Installers need to perform rigorous exterior and interior deburring. Proper chamfering protects the delicate O-rings inside push-to-connect fittings. Failing to deburr causes immediate micro-leaks.
You must manage thermal expansion correctly to prevent structural buckling. Aluminum expands significantly when ambient temperatures fluctuate. Its expansion coefficient is roughly twice the rate of traditional steel. You must implement specific mounting strategies to handle this movement.
Sliding Hangers: You must use sliding hangers instead of rigid clamps to allow lateral movement.
Expansion Loops: Long, straight runs absolutely require engineered expansion loops to absorb linear growth.
Anchor Points: Place fixed anchor points strategically to direct thermal expansion toward the designated loops.
Structural support requirements dictate long-term system longevity. Follow strict manufacturer guidelines for hanger spacing. Spacing depends entirely on the outer pipe diameter and wall thickness. Proper support prevents unwanted sagging between connection points. Sagging creates hazardous traps for condensed moisture. Correct sloping ensures all moisture flows directly to designated drip legs.
Facilities rarely build completely new infrastructure from scratch. You often transition from existing black iron or copper headers. New branch lines typically use lighter, more efficient materials. Designing a reliable hybrid network requires specific integration strategies. You must plan for physical compatibility and chemical safety simultaneously.
Galvanic corrosion presents a severe risk during retrofitting. Electrolytic degradation occurs when two dissimilar metals touch directly. Moisture inside the airline acts as a highly conductive electrolyte. The less noble metal will corrode rapidly at the connection joint. Aluminum acts anodically when connected directly to copper or brass alloys.
You must deploy strict isolation techniques to prevent electrolytic failure. Facility engineers rely on specific hardware to bridge dissimilar materials safely. These components break the electrical continuity between the different piping networks.
Install dedicated dielectric unions at every single metal transition point.
Utilize specialized isolation valves featuring non-conductive polymer components.
Apply approved non-conductive thread sealants on transition adapter threads.

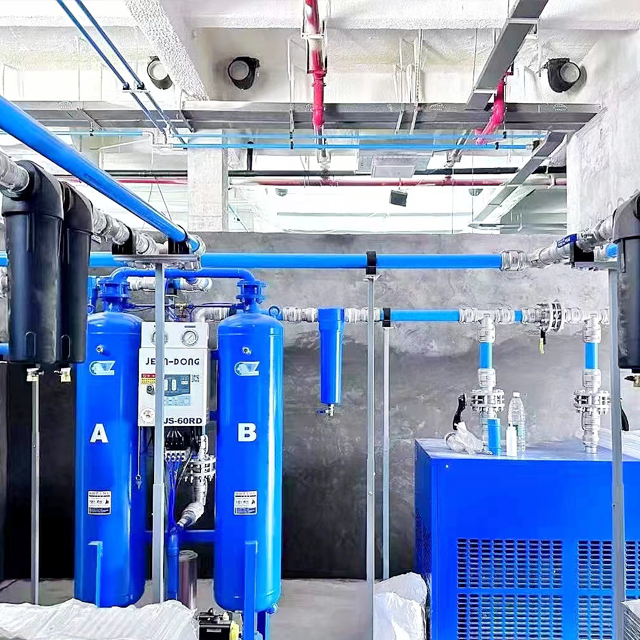

Moisture management requires careful planning during system integration. Old steel headers often hold excessive residual water and rust scale. You must site water separators strategically at connection junctions. Place drop legs exactly at the transition points between old and new piping. Coalescing filters capture damaging aerosols before they enter your new network. This aggressive filtration protects your pristine aluminum interior from legacy contaminants.
Safety testing validates your installation before full operational handover. Follow strict standard operating procedures for pressure testing newly installed networks. Never use hazardous gases or volatile fluids for structural validation. Use clean compressed air or pure nitrogen exclusively. Apply step-up pressurization techniques gradually to monitor structural integrity safely.
During the testing phase, apply approved leak detection fluids at every joint. Watch carefully for bubbling at the push-to-connect fitting collars. If bubbling occurs, depressurize the entire zone immediately. Reseat the pipe properly before attempting another pressure cycle. Never adjust fittings while the system remains under active pressure.
OSHA strictly regulates compressed air safety across industrial environments. Aluminum boasts an exceptionally strong safety profile for high-pressure applications. It remains highly shatter-resistant even under extreme mechanical stress. OSHA actively penalizes facilities using non-compliant materials like standard PVC. PVC shatters into dangerous, high-velocity shrapnel upon catastrophic failure. Always verify your chosen system meets ASME B31.1 or B31.3 standards.
Vendor shortlisting requires clear, objective purchasing logic. Check the manufacturer's warranty length and specific coverage terms carefully. Look for available CAD or BIM layout support during the design phase. BIM models speed up complex engineering tasks significantly. Evaluate the availability of proprietary versus universal adapter fittings. Universal fittings offer greater long-term maintenance flexibility for future modifications.
Implementing modern aluminum piping represents a significant operational upgrade. You must plan carefully for thermal expansion, strict deburring, and proper sizing. A well-designed closed-loop layout ensures consistent pneumatic power across your entire facility. The initial material investment pays off rapidly through superior efficiency. It drastically cuts installation labor and eliminates wasteful pressure drops.
Take actionable steps before purchasing your new infrastructure components. Conduct a comprehensive compressed air audit first to understand your baseline. Consult a qualified layout engineer next to finalize your network architecture. Map out your exact CFM drops and future expansion zones clearly. Proper preparation guarantees a leak-free, highly efficient compressed air system.
A: You do not need heavy threaders or welding gear. However, you must use specific aluminum pipe cutters to ensure square cuts. Dedicated deburring tools and chamfering cones are absolutely mandatory. These tools prepare the pipe ends safely. You will also need proper spanner wrenches to tighten specific compression collars securely.
A: Yes, aluminum performs excellently for vacuum systems and inert gases like nitrogen or argon. It provides a clean, non-contaminating environment. However, you must check chemical compatibility charts carefully. Aggressive chemicals, strong acids, or highly alkaline fluids will degrade the aluminum and destroy the fitting O-rings quickly.
A: First, depressurize the system completely. Use the manufacturer's release tool to unseat and remove the fitting. Inspect the internal O-ring for cuts or debris. Check the pipe end for rough burrs or out-of-roundness. Cut a fresh, perfectly square end, deburr it thoroughly, and reconnect the fitting firmly.
A: Burying raw aluminum underground poses a severe risk of soil corrosion. Alkaline soils and moisture degrade the metal rapidly. If underground routing is unavoidable, you must follow strict trenching protocols. The aluminum must be fully encased inside a sealed, waterproof PVC sleeve to prevent any direct soil contact.
